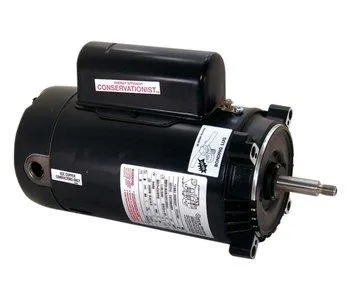

2.5 hp 3450rpm 56J Frame 230 Volts Swimming Pool Pump Motor - AO Smith Electric Motor # UST1252 (Ha

Product Details

• Shipping Weight: 32.5 pounds
• International Shipping: This item is not eligible for international shipping. Learn More
• Part Number: UST1252
• Item Weight: 50 pounds
• Product Dimensions: 17 x 13.5 x 13.5 inches
• Item model number: UST1252
• Size: 2.5 HP
• Color: Black
• Voltage: 230 volts
• Item Package Quantity: 1
• Batteries Required?: No

• Price For: Each Frame: 56J Ins. Class: B Item: Pool and Spa Pump Motor Motor Enclosure Design: Open Dripproof Phase: 1 Finish: Black HP: 2-1/2 Motor Bearings: Ball Shaft Material: 303 Stainless Steel Hz: 60 Shaft Length: 2-1/2" Voltage: 208-230 Full Load Amps: 12.6-11.4 Motor Service Factor: 1.06 Ambient Temperature: 50 Degrees C
• Motor Sub Application: Pool and Spa Pump Motor Mounting Type: Face Motor Application: Pump Motor Design: Capacitor-Start/Run Shaft Dia.: 5/8" Voltage Compatibility: 115/208-230, 208-230, 208-240 Nameplate RPM: 3450 Shaft: Threaded 7/16-20 UNF-2A RH Motor Thermal Protection: Auto Motor Shaft Rotation: CCWSE Standards: UL Recognized (E46412), CSA Certified (LR43341) Motor Flange Material: Aluminum
• Country of Origin (subject to change): Mexico

'Pool and Spa Pump Motor, Capacitor-Start/Run, Open Dripproof, 2-1/2 HP, 3450 Nameplate RPM, 56J Frame, CCWSE Motor Shaft Rotation, Voltage 208-230, 12.6-11.4 Full Load Amps, 1 Phase, 60 Hz, Face Motor Mounting Type, Ball Motor Bearings, Black, Motor Flange Material Aluminum, Shaft Threaded 7/16-20 UNF-2A RH, Shaft Material 303 Stainless Steel, Motor Thermal Protection Auto, 1.06 Motor Service Factor, Ambient Temperature 50 Degrees C, Shaft Dia. 5/8 In., Shaft Length 2-1/2 In., Ins. Class B'
